Board and Batten Calculator: How to Calculate Spacing, Materials, and Layout
Board and batten is one of the most versatile and visually impactful wall treatments available — on both interior accent walls and exterior house siding. Whether you're creating a farmhouse-style feature wall in a living room or planning new exterior cladding, getting the spacing right is what separates a professional-looking result from an off-center, uneven finish that's visible from across the room.
This guide covers the complete board and batten spacing formula, how to calculate the number of battens for any wall width, material recommendations, cost estimates, and everything else you need before picking up a brad nailer.
What Is Board and Batten?
Board and batten is a wall treatment consisting of vertical strips (battens) applied at regular intervals, with a horizontal rail at the top and bottom framing the design. The spaces between the battens represent the "boards" — in modern interior applications, these are usually just the painted drywall or a backing panel creating the illusion of wide planks.

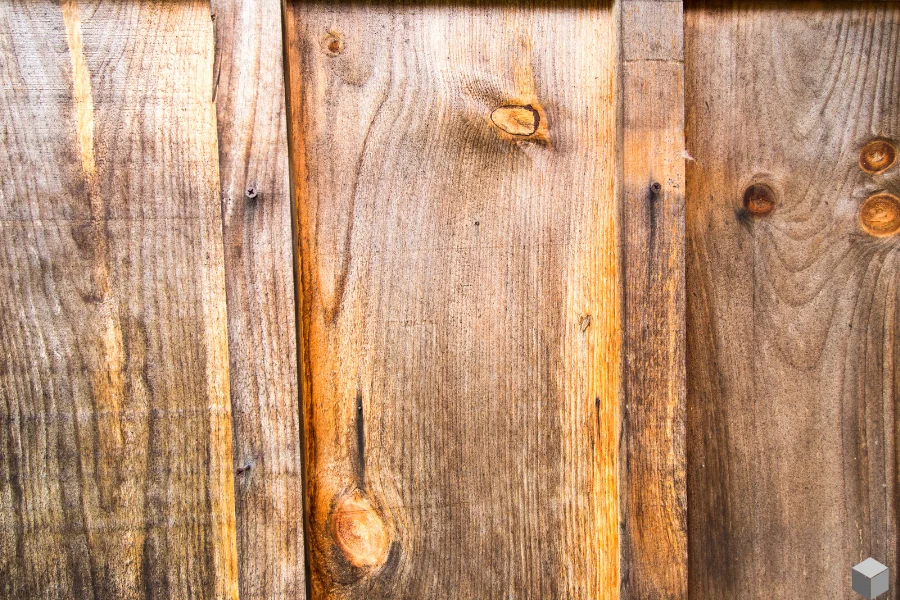

Originally, true board and batten was a structural exterior siding style where wide planks were installed vertically, and narrow battens covered the seams between them. Today, both applications remain popular:
- Interior board and batten: Accent walls, entryways, dining rooms, bedrooms, and staircases. Battens are typically 1×3 or 1×4 MDF or pine applied to drywall.
- Exterior board and batten siding: Facades, barns, sheds, and entire houses. Traditionally cedar or pine; now also fiber cement, vinyl, and engineered wood.
The alternating pattern creates strong vertical lines that make rooms feel taller and walls feel more intentional — which is why it's been a staple of American farmhouse, craftsman, and cottage architecture for centuries.
The Board and Batten Spacing Formula
The goal is to achieve even gaps between all battens from one edge of the wall to the other. You cannot simply pick a spacing and start — the last gap will almost certainly be different from the others unless you do the math first.
Step 1 — Measure the wall width
Measure the total wall width in inches. Work in inches throughout to avoid fractions of feet.
Example wall: 144 inches wide (12 feet)
Step 2 — Choose your batten width
Standard batten widths for interior walls are 1×3 (2.5" actual) or 1×4 (3.5" actual). For exterior siding, 1×2 or 1×3 are common.
Example: 1×4 battens = 3.5 inches wide
Step 3 — Choose your approximate desired spacing
Pick a target spacing between battens — this is your starting point, not the final answer. Common interior spacing is 10–16 inches. Exterior spacing is typically 6–12 inches.
Example: target spacing = 12 inches
Step 4 — Calculate total "units" (batten + space)
One unit = batten width + desired space width 3.5 + 12 = 15.5 inches per unit
Step 5 — Find the remaining wall width
Subtract one batten width from the total wall width (to account for the first edge batten): 144 − 3.5 = 140.5 inches remaining
Step 6 — Find the number of spaces
Divide remaining width by unit size: 140.5 ÷ 15.5 = 9.06 → round to 9 spaces
Step 7 — Calculate exact spacing
Remaining width ÷ number of spaces = one unit width 140.5 ÷ 9 = 15.61 inches per unit
Exact space = unit width − batten width 15.61 − 3.5 = 12.11 inches exact spacing
This gives you a perfectly even layout with no awkward leftover gap at the end.
Board and Batten Spacing Formula Summary
Exact Space = (Wall Width − Batten Width) ÷ ROUND((Wall Width − Batten Width) ÷ (Batten Width + Target Space)) − Batten Width
Use the board and batten calculator above to handle this instantly — enter your wall width, batten width, and target spacing to get the exact spacing and total batten count in seconds.
How Wide Should My Board and Batten Be?
The right batten width depends on the scale of the wall and the aesthetic you're after.
Recommended Batten Width by Application
| Application | Common Batten Width | Board Size |
|---|---|---|
| Small room / powder room | 1×2 (1.5" actual) | 1×2 or 1×3 |
| Standard interior room | 1×3 (2.5" actual) | 1×3 or 1×4 |
| Large room / entryway | 1×4 (3.5" actual) | 1×4 |
| Exterior residential | 1×3 or 1×4 | 1×8 to 1×12 wide boards |
| Exterior barn / shed | 1×3 or 1×4 | 1×6 to 1×12 |
| Vinyl board and batten | 4" face | Panel systems |
General rule: Narrower battens (1×2 or 1×3) with tighter spacing create a more delicate, refined look. Wider battens (1×4 or wider) with larger spacing read as bolder and more rustic.
Board and Batten Spacing Reference Table
| Wall Width | Batten Width | Approx. Target Spacing | Battens Needed | Exact Spacing |
|---|---|---|---|---|
| 96" (8 ft) | 3.5" (1×4) | 12" | 7 | 11.83" |
| 120" (10 ft) | 3.5" (1×4) | 12" | 9 | 11.94" |
| 144" (12 ft) | 3.5" (1×4) | 12" | 9 | 12.11" |
| 144" (12 ft) | 2.5" (1×3) | 14" | 9 | 13.94" |
| 168" (14 ft) | 3.5" (1×4) | 14" | 10 | 13.75" |
| 192" (16 ft) | 3.5" (1×4) | 14" | 12 | 13.71" |
Calculating the Number of Battens
Once you have exact spacing, the total number of battens is:
Number of Battens = Number of Spaces + 1
Example: 9 spaces → 10 battens
Batten Material Calculation
Each batten runs the full height of the wall (floor to ceiling, or floor to top rail, depending on your design).
Linear Feet of Batten = Number of Battens × Wall Height (ft)
Example: 10 battens on an 8 ft wall = 80 linear feet of batten material
Add 10–15% for waste and cuts.
Top Rail and Baseboard
Most board and batten walls also include:
- Top rail (horizontal board at top of treatment): 1 × wall width
- Baseboard (horizontal board at base): 1 × wall width
These are typically the same board width as the battens.
Board and Batten for Interior Walls: Step-by-Step Installation Overview
Tools needed: Tape measure, level, stud finder, miter saw, brad nailer (or finish nailer), nail gun compressor or cordless finish nailer, caulk gun, sandpaper, primer, paint.
A brad nailer (15-gauge or 18-gauge) is the standard tool for attaching battens to drywall. An 18-gauge brad nailer is lighter and leaves smaller holes — ideal for 1×2 and 1×3 MDF battens. A 15-gauge finish nailer has more holding power and is better for thicker 1×4 stock or exterior applications.
Installation Steps
- Mark stud locations — if attaching to drywall without a backing panel, knowing where studs are allows you to nail into solid wood for at least some battens.
- Install top rail — level it carefully across the full width; this horizontal board anchors everything.
- Install baseboard — level along the floor, accounting for any unevenness.
- Mark batten positions — using your calculated exact spacing, mark the center of each batten with a pencil line.
- Cut battens — all to the same height (ceiling to top of baseboard, or top rail to top of baseboard depending on your design).
- Nail battens — use construction adhesive plus a brad nailer for drywall applications. For exterior, use structural fasteners into framing.
- Fill nail holes and caulk all joints — this step is what separates a professional-looking result from a DIY-looking one.
- Prime and paint — two coats of a semi-gloss or satin finish reads cleanest on board and batten.
Exterior Board and Batten Siding
For exterior board and batten siding, the construction is reversed from interior: wide boards are installed first (vertically, full height), then narrow battens cover the seams.
- Boards: Typically 1×8, 1×10, or 1×12 cedar or pine, spaced tightly
- Battens: Typically 1×2 or 1×3, centered over each seam
- Spacing: Exterior boards are placed edge to edge; batten covers the gap. Spacing is defined by board width, not a gap between battens
Vinyl board and batten panels are also widely available — these are one-piece panels that create the appearance of board and batten without individual component installation. Coverage is typically 8 ft × 4 ft per panel.
Board and Batten Cost: How Much Does It Cost?
Interior Board and Batten Wall Cost (Per Wall, Material + Labor)
| Room Type | Approx. Square Feet | Material Cost | Installed (DIY) | Installed (Pro) |
|---|---|---|---|---|
| Small bedroom wall | 80–100 sq ft | $100 – $250 | $150 – $350 | $400 – $900 |
| Standard room wall | 120–160 sq ft | $150 – $350 | $200 – $500 | $500 – $1,200 |
| Entryway / foyer | 100–200 sq ft | $150 – $400 | $200 – $600 | $600 – $1,500 |
Exterior Board and Batten Siding Cost (1,500 sq ft House)
A 1,500 sq ft house has approximately 1,200–1,800 sq ft of exterior wall surface to cover, depending on stories and architectural complexity.
| Material Type | Cost per Sq Ft (Installed) | Total for 1,500 sq ft Exterior |
|---|---|---|
| Cedar board and batten | $4 – $10 | $6,000 – $15,000 |
| Pine board and batten | $3 – $7 | $4,500 – $10,500 |
| Fiber cement board and batten | $5 – $12 | $7,500 – $18,000 |
| Vinyl board and batten panels | $3 – $8 | $4,500 – $12,000 |
How Many Board Feet in a 2×4×8 ft Piece of Lumber?
A board foot is a unit of lumber volume: 1 foot × 1 foot × 1 inch thick.
Board feet = (Thickness in inches × Width in inches × Length in feet) ÷ 12
For a 2×4×8: (2 × 4 × 8) ÷ 12 = 64 ÷ 12 = 5.33 board feet
This formula is useful when pricing hardwood lumber by the board foot for interior board and batten projects using real wood rather than MDF.
Disadvantages of Board and Batten
Despite its popularity, board and batten has real downsides worth considering:
Labor-intensive installation. Getting perfectly even, level spacing across multiple walls requires careful measuring, marking, and adjustment. Errors in the first batten compound across the entire wall.
Caulking maintenance. Every joint between battens and the wall or rail must be caulked, and that caulk needs periodic reapplication as houses settle and wood moves seasonally.
MDF can't get wet. Interior MDF battens swell and deteriorate if exposed to moisture — not ideal for bathrooms unless you use solid wood or PVC.
Exterior requires regular painting or staining. Wood exterior board and batten needs repainting every 5–10 years. Fiber cement is lower maintenance but costs more upfront.
Can make low ceilings feel tighter. The strong vertical lines of board and batten actually enhance ceiling height visually — but in a room that's already cramped, they can add visual weight.
Frequently Asked Questions
How to Calculate Board and Batten Wall?
Measure your wall width in inches. Subtract one batten width from the total. Divide the result by your target spacing plus batten width to get the number of spaces (round to the nearest whole number). Divide the remaining width by the number of spaces to get one unit width. Subtract batten width to get exact spacing. Battens needed = spaces + 1. Use the board and batten calculator above for instant results.
How Much to Board and Batten a 1,500 Sq Ft House?
For exterior board and batten siding on a 1,500 sq ft home, expect to pay $4,500–$18,000 installed depending on material choice. Cedar runs $6,000–$15,000; vinyl and pine are less expensive at $4,500–$10,500; fiber cement is the most durable at $7,500–$18,000. DIY material-only costs run $1,500–$5,000 depending on material.
How Wide Should My Board and Batten Be?
For interior walls, 1×3 (2.5" actual) is the most popular choice — wide enough to be visible without overwhelming the wall. 1×4 (3.5" actual) is better for large rooms, entryways, and dining rooms. Spacing of 10–16 inches is standard for interior. Narrower battens with tighter spacing feel more refined; wider battens with bigger gaps feel bolder and more rustic.
How Many Board Feet Are in a 2×4×8 ft?
A 2×4×8 contains 5.33 board feet using the formula: (Thickness × Width × Length) ÷ 12 = (2 × 4 × 8) ÷ 12 = 5.33 board feet. This calculation is used for hardwood lumber pricing.
What Is the Disadvantage of Board and Batten?
The main disadvantages are: labor-intensive installation requiring precise spacing calculations; caulking every joint and maintaining it as the house settles; MDF battens being moisture-sensitive (avoid in bathrooms); exterior wood requiring periodic repainting; and the strong vertical lines potentially adding visual weight to low-ceilinged rooms.
How Much Money Is Required for a 1,500 Sq Ft House?
For interior board and batten accent walls in a 1,500 sq ft home, budget $500–$2,500 in materials for 2–4 feature walls (depending on material and number of walls). For exterior board and batten siding on the full house, budget $4,500–$18,000 installed. For a complete new construction or full renovation including framing, the question encompasses far more than siding — board and batten is just one component.
Quick Reference Summary
| Item | Formula / Value |
|---|---|
| Exact spacing | (Wall Width − Batten Width) ÷ Spaces − Batten Width |
| Number of battens | Number of Spaces + 1 |
| Linear feet of batten | Number of Battens × Wall Height |
| Standard interior spacing | 10–16 inches |
| Standard exterior spacing | 6–12 inches |
| Common interior batten width | 1×3 (2.5") or 1×4 (3.5") |
| Overage factor | Add 10–15% |
| Interior project cost per wall | $400 – $1,500 installed |
| Exterior cost (1,500 sq ft) | $4,500 – $18,000 installed |
Use the board and batten calculator above to enter your wall width, batten width, and target spacing — it instantly calculates exact spacing, total batten count, and linear feet of material needed for your project.
